Guillotine Cutting Leaf Spring Machine
Fulad Sanat Sapra Company
Guillotine Cutting Leaf Spring Machine
The first two guillotine cutters ordered by Fanarsazi Khavar companies and Kimia Fulad Aria was designed, manufactured, assembled, installed and commissioned by the technical expert of Fulad Sanat Sapra Company.
One of the most important features of this machine is its high-speed performance relying on the medium pressure hydraulic system of 250 bar and its strong mechanism, and replacing it with other cutting methods in spring steel for high thickness products.

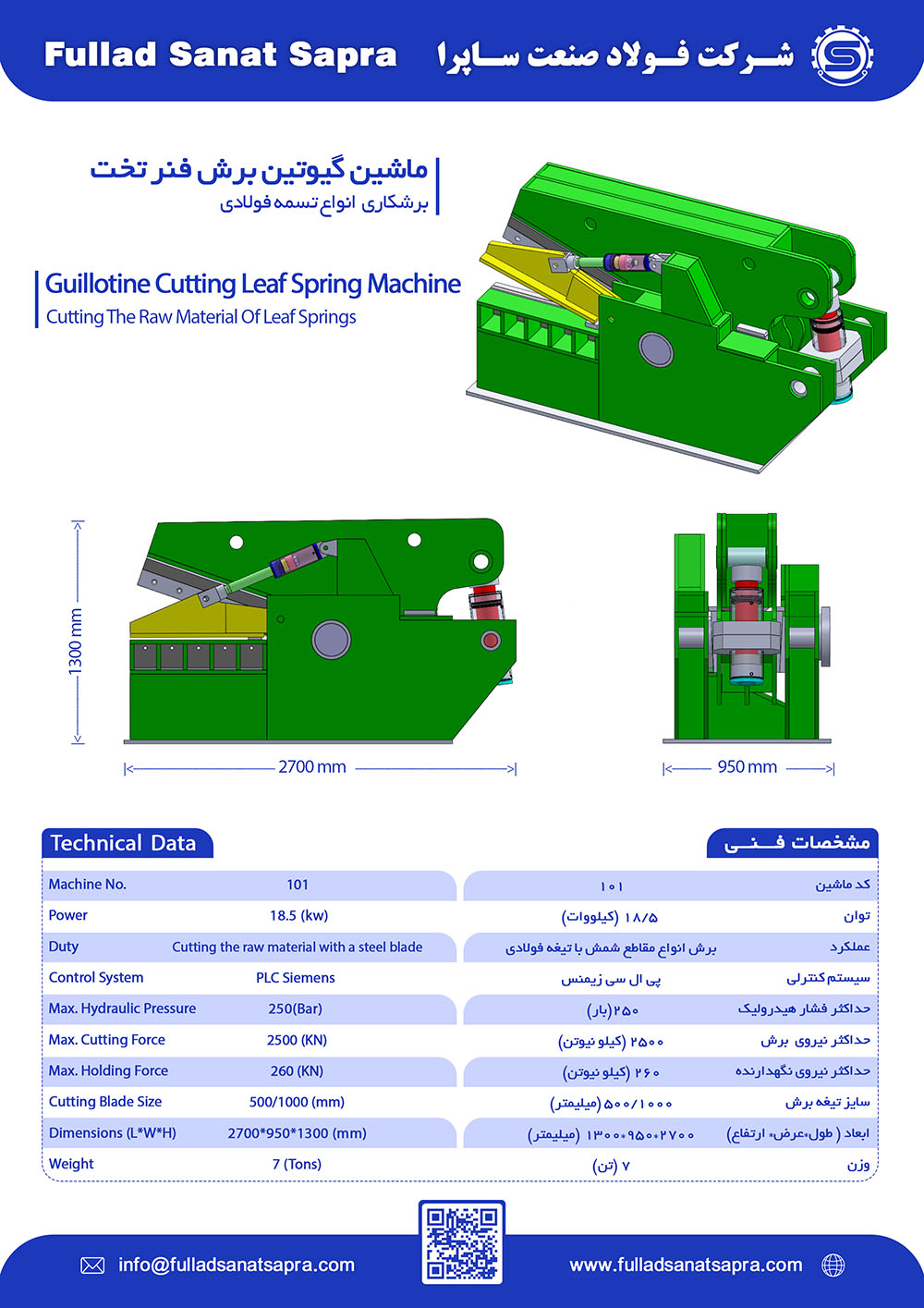

Technical specifications
| Product Code | 101 |
|---|---|
| Product Name | Guillotine Cutting Leaf Spring Machine |
| Power | 18.5 KW |
| Duty | Cutting the raw material with a steel blade |
| Control System | PLC Siemens |
| Max Pressure | 250 Bar |
| Max Cutting Force | 2500 KN |
| Max Holding Force | 260 KN |
| Cutting Blade Length | 500/1000 mm |
| Dimensions (L*W*H) | 2700*950*1300 mm |
| Weight | 7 Tons |
